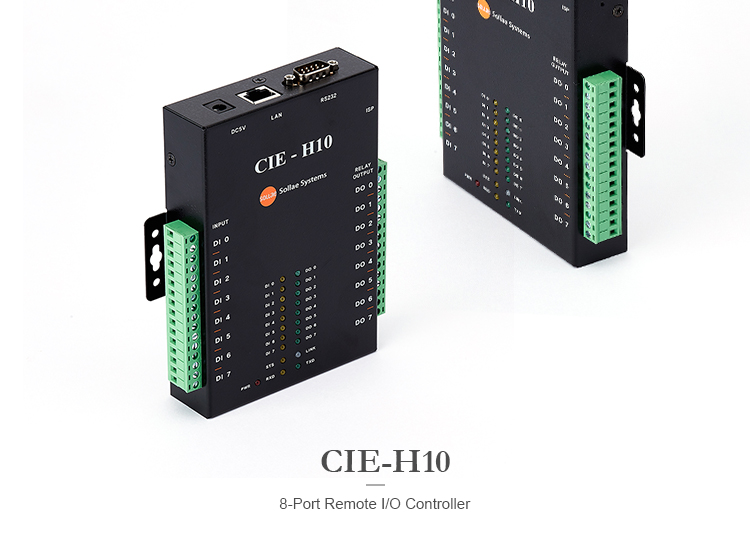

| Digital Input Port |
| Number of Ports | 8 |
|---|
| Interface | Isolated by Photo-coupler |
|---|
| Electric Parameter | MAX VIL=1.2V, MIN VIH=4.5V |
|---|
| Maximum Input Voltage | DC 24V |
|---|
|
| Digital Output Port |
| Number of Ports | 8 |
|---|
| Interface | Isolated by Relay |
|---|
| Relay Capacity | 5A(DC28V) |
|---|
|
| Serial Physical Interface |
| Serial Interface | 1 x RS232 Port |
|---|
| RXD, TXD, RTS,CTS, DTR, DSR, GND |
| ± 15KV ESD Protection |
| Connector | DB9M Connector |
|---|
|
| Serial Port Property |
| Data Rate | 300bps ~ 230,400bps |
|---|
| Data Bits | 5, 6, 7, 8 bits |
|---|
| Parity | None, Even, Odd, Mark, Space |
|---|
| Stop Bit | 1, 1.5, 2 |
|---|
|
| Network Physical Interface |
| Network Interface | 10Base-T/100Base-TX Ethernet(RJ45) |
|---|
| Ethernet Speed Auto Sense |
| 1:1 or Cross-over Cable Auto Sense |
| 1000 VAC Isolation |
|
| Software Functions |
| Protocols | TCP, UDP, IP, ICMP, ARTP, Ethernet, TELNET |
|---|
| TFTP, DHCP, PPPoE, DNS, HTTP, Modbus/TCP |
| Configuration and Monitoring Tool through Ethernet |
| Telnet Login |
| Security | IP & MAC filtering - Restrict host or network |
|---|
| Password for Configuring |
Digital I/O Port
Communication Mode | Modbus/TCP, HTTP, Stand alone(by simple equation) |
|---|
| Communication Mode | TCP Server(T2S) |
|---|
| TCP Client(COD) |
| TCP Server/Client with AT Command(ATC) |
| UDP Mode(U2S) |
| Additional Functions | Remote Debug Function |
|---|
| TCP Server/Client Mode |
| Sending MAC address Option |
|
| Indicators(LEDs) |
| Power | Red |
|---|
| Status | Yellow, The Current Status |
|---|
| Ethernet Link | Red - 10M Ethernet, Green - 100M Ethernet |
|---|
| Ethernet RXD | Yellow |
|---|
| Ethernet TXD | Green |
|---|
| Digital Input | Yellow x 8 |
|---|
| Digital Output | Green x 8 |
|---|
|
| Management |
| ezManager | Configuration and Monitoring Tool through Network and Serial |
|---|
| Telnet | Telnet Login |
|---|
| AT Command | Configuring in ATC Mode |
|---|
|
| Software |
| ezManager | Configuration Tool for Windows |
|---|
| ModMap | Management Tool of I/O controllers for Windows |
|---|
| ezVSP | Serial to Network Virtual Driver for Windows |
|---|
| ezTerm | Simple TCP/IP Communication Test Tool |
|---|
|
| Dimension |
| Size | 153mm x 126mm x 32mm |
|---|
|
| Operating Environment |
| Input Voltage | DC 5±0.5V |
|---|
| Current Consumption | 510mA typical |
|---|
| Operating Temperature | 0℃ ~ +55℃ |
|---|
| Storage Temperature | -40℃ ~ +85℃ |
|---|
|
| Certificate |
| KC | Registration(KN 22, KN 24) |
|---|
| CE | EMC 2014/30/EU, RoHS 2011/65/EU |
|---|
|
